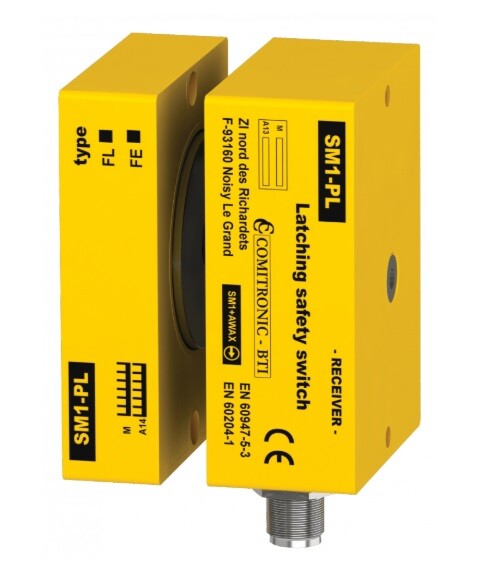

COMITRONIC SM1-PL-R-AC-FL Bezpečnostní spínač *9990952

Technické parametry:
Level of performance with AWAX controller: up to PL = e
Safety category: up to 4 with AWAX controller or PLC SIL 3
Time before dangerous failure: MTTFd = 100 years
Maximum detection activation distance: 2 mm
Holding force: up to 580 N
Safety contacts/diagnostics: 2 x NO 400mA max/24V redundant and 1 x PNP 250mA
Detection encoding: mono-code inviolable
Indicator: LED
Reset: automatic or controlled (ref. + OP)
Attachment: 4 M4 screws (inviolable on new generation and optional ref.: BH4)
Mounting position: 1
Casing material: INOX316L mirror polished (OX version) or POLYCARBONATE (PL version)
Suction cup material: INOX (SM1 + OX) or steel (SM1 + PL-AC)
Electrical connection: the M12 metal base will be replaced with a 50cm PUR cord with an M12 connector on the new generation
Water resistance: IP 67/68
